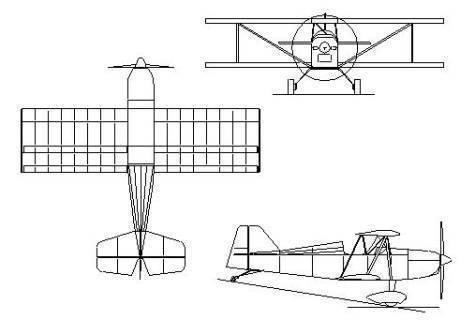

 Acrolite
1C Light Aircraft
Name :
Acrolite
 Model: 1C
Type:
Single Place light sport biplane, strut braced.
Construction: Welded
steel tube fuselage, riveted aluminum tube tail group,
full sheeted box spar wing.
Aircraft Physical
Specifications
| Engine |
80 hp Rotax 912U |
100 hp Rotax 912S |
120 hp Hirth F30 |
| Reduction |
2.27 to 1 |
2.43 to 1 |
2.43 to 1 |
| Propeller |
65 x 55 |
68 x 64 |
64 x 44 |
| Airfoil |
GA30U-212 |
|
GA30U-012 |
| Wingspan |
18 ft. x 2 |
|
|
| Wing area |
120 sq. ft. |
|
|
| Aspect ratio |
8 to 1 |
|
|
| Length |
17 ft. |
|
|
| Height |
6 ft. |
|
|
| Fuel capacity |
9 gal U.S. |
|
|
| Wheel & tire size |
500 X 5 |
|
|
| Empty weight |
525 lbs |
|
|
| Gross weight |
800 lbs |
|
|
| Span loading |
22 lb./ft |
|
|
| Wing loading |
6.7 lb./sq. ft. |
|
|
| Power loading |
10 lb/bhp |
8 lb/bhp |
6.7 lb/bhp |
Aircraft Performance
Specifications
| Power off stall speed |
48 mph |
|
|
| Power on stall speed |
44 mph |
|
|
| Landing speed |
65 mph |
|
|
| Maneuvering speed |
95 mph. |
|
|
| Maximum level speed |
130 mph |
140 mph |
150 mph |
| Never exceed speed |
160 mph |
|
|
| Cruise speed |
112 mph. |
122
mph. |
130 mph |
| Best glide speed |
75 mph |
|
|
| Best rate of climb |
1600 fpm |
2100 fpm |
2400 fpm |
| Best climb rate speed |
80 mph |
90 mph |
90 mph |
| Best climb angle speed |
70 mph. |
|
|
| Range |
250 sm. |
|
|
| Take off distance |
500 ft. |
|
|
| Landing distance |
500 ft. |
|
|
|
