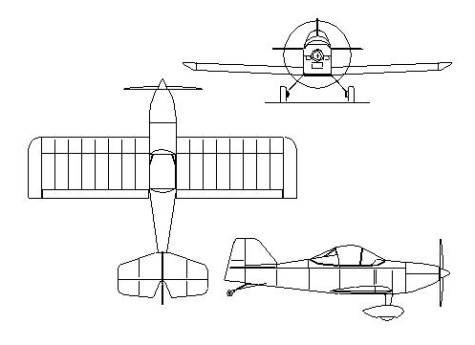

Acrolite
1L Light Aircraft
Name :
Acrolite
Model: 1L
Type:
Single Place light sport monoplane.
Construction: Welded
steel tube fuselage, riveted aluminum tube tail group,
full sheeted aluminum box spar wing.
Aircraft Physical
Specifications
| Engine |
80 hp Rotax 912 |
100 hp Rotax 912S |
115 hp Rotax 914 |
| Reduction |
2.27 to 1 |
2.43 to 1 |
2.43 to 1 |
| Propeller |
65 x 63 |
67 x 70 |
69 x 74 |
| Airfoil |
GA30U-X212 |
|
|
| Wingspan |
20 ft. |
|
|
| Wing area |
90 sq. ft. |
|
|
| Wing Chord |
4.5 ft. |
|
|
| Aspect ratio |
4.4 to 1 |
|
|
| Length |
17 ft. |
|
|
| Height |
6 ft. |
|
|
| Fuel capacity |
9 gal U.S. |
|
|
| Wheel & tire size |
500 X 5 |
|
|
| Empty weight |
550 lbs |
|
|
| Gross weight |
800 lbs |
|
|
| Span loading |
20.0 lb./ft |
|
|
| Wing loading |
8.8 lb./sq. ft. |
|
|
| Power loading |
10 lb/bhp |
8 lb/bhp |
7 lb/bhp |
Aircraft Performance
Specifications (computer projected)
| Power off stall speed |
51 mph. |
|
|
| Power on stall speed |
45 mph. |
|
|
| Landing speed |
65 mph. |
|
|
| Maneuvering speed |
100 mph. |
|
|
| Maximum level speed |
140 mph. |
150 mph. |
165 mph. |
| Never exceed speed |
150 mph. |
|
|
| Cruise speed |
115 mph. @
5000 rpm. |
130 mph. |
140 mph. |
| Best glide speed |
75 mph. |
|
|
| Best rate of climb |
1200 fpm. |
1400 fpm. |
1900 fpm. |
| Best climb rate speed |
90 mph. |
100 mph. |
100 mph. |
| Best climb angle speed |
80 mph.. |
|
|
| Range |
250 sm.. |
|
|
| Take off distance |
600 ft. |
550 ft. |
500 ft. |
| Landing distance |
500 ft. |
|
|
|
